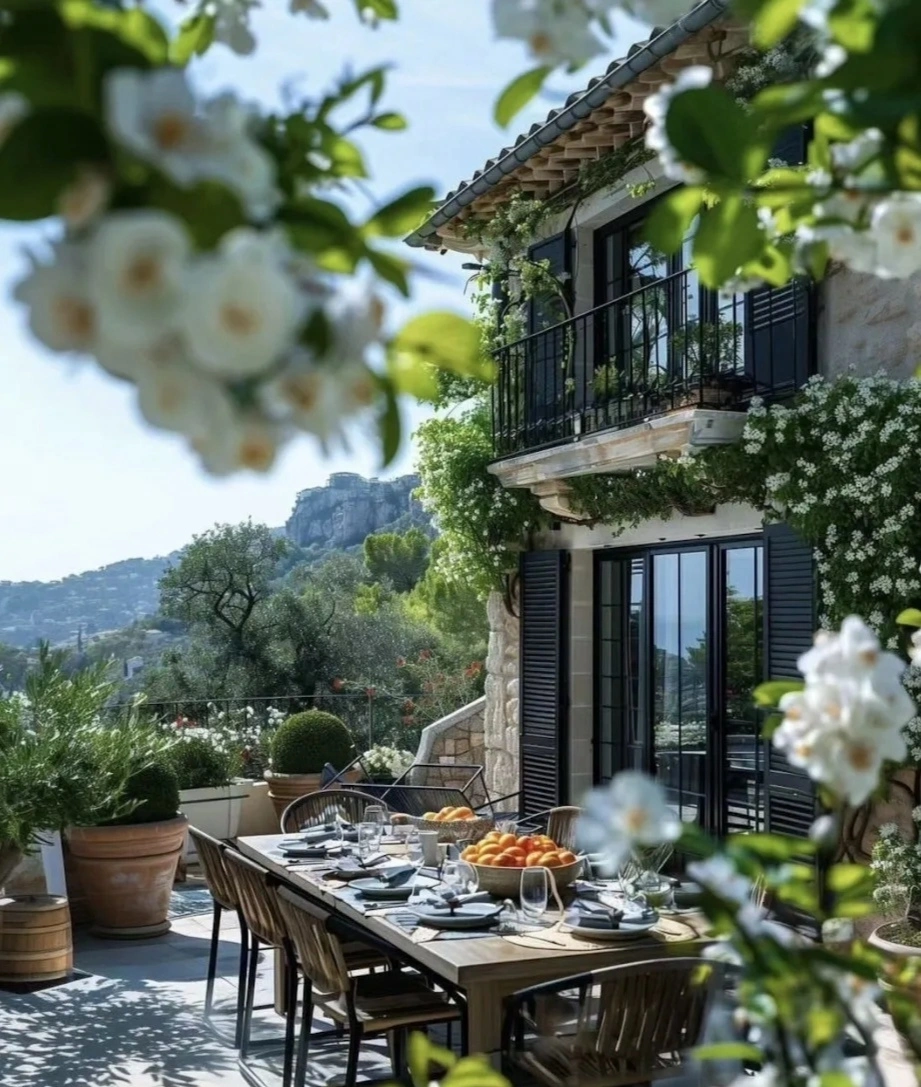

Athens M70 French Retro-Style Thermal Break Aluminum Swing Door
Athens M70 French Retro-Style Thermal Break Aluminum Swing Door offers excellent thermal insulation and a retro design for enhanced comfort.
Supply Ability: 50000 ㎡ per year
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Money Gram
Delivery Time: 60 days
Packaging Details: Carton or wooden case
Price: Negotiable
Minimum Order Quantity: Negotiable
Model Number: French Style Windows
Certification: AS 2047
Brand Name: M&L
Place Of Origin: China
| Air Tightness Performance | level 7 | (AAMA Standard) |
| Water Tightness Performance | level 6 720Pa | (AAMA Standard) |
| Wind Resistance Performance | level 9 | (AAMA Standard) |
| Thermal Insulation Performance | level 8 | (GBT8478) |
| Sound Insulation Performance | level 5 | (GBT8478) |
|
Main Profile Wall Thickness (mm) |
Visible Surface Dimensions (mm) |
Profile Thickness Dimensions (mm) |
Glass Thickness (mm) |
Thermal Break (mm) |
Sash Width: 450mm-1950mm |
|
|
2.2 |
Frame: 28 |
Sash: 86 |
Frame:120 |
5G+16A+5G |
24 |
Sash Height: 700mm-2800mm |
|
Sash: 102 |
||||||
|
Mid Frame: 28 |
Maximum Sash Weight: 200kg |
|||||
|
adapter Frame：80 |
||||||
style
part. 1
● The Stuttgart series addresses designers' concerns by resolving the conflict between large fixed glass panels and small operable casement windows, achieving both the beauty of large glass views and the harmony and comfort of large openings.
● Both the frame and mullion feature a rectangular 5-chamber structure design, combined with corner brackets and connectors with sealing functions, ensuring a strong connection and stable frame structure.
● The use of box corner brackets, which integrate the functions of corner assembly and screw fastening, accommodates different processing habits and equipment.
● The entire series features outdoor EPDM gasket sealing design, with glass beads located on the indoor side, eliminating installation risks.
● The glass beads in this series are exclusively developed by our company, featuring an integrated embedded 3D pressure line, ensuring the stability of large glass panels after installation, easier installation, scratch resistance, and a simple, elegant, and aesthetically pleasing overall appearance. Our company has developed three sizes of beads to accommodate ultra-large glass panels.
Part. 2
● The secondary frame's intermediate sealing structure addresses the poor controllability of adapter frame installation and the risk of water leakage.
● The outdoor and indoor surfaces are flush, achieving a seamless alignment of the window sashes and perfectly hiding the gaps between frames, resulting in a more minimalist and visually appealing effect.
● The indoor installation design for outward-opening sashes allows the window sash and adapter frame to be installed as one unit from the inside, avoiding safety risks associated with on-site installation of outward-opening sashes.
● Fixed glass panels use an intermediate sealing structure, eliminating the risk of bead leakage, and improving air tightness, insulation, and sound insulation simultaneously.
● The visible drainage design, combined with an external windproof drainage cover, prevents water backflow and ensures smoother drainage.
● The screen options include built-in accordion folding screens or external retractable screens.
● Indoor safety glass guardrails are designed for added security.
