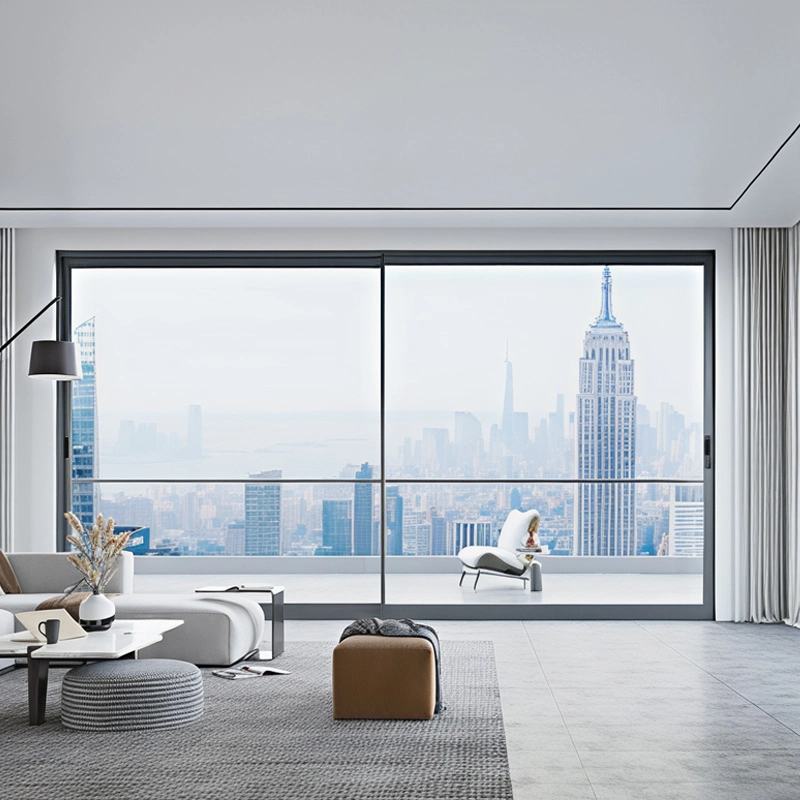

Y05-130 Sliding System
Y05-130 sliding system features pillar-free corners, unobstructed views, customizable tracks, and pocket door design.
● Ultra-narrow frame with a sash hook of only 30.8mm, ensuring the design concept is perfectly realized.
● Lift-and-slide door system, utilizing the physical properties of gravity and friction to create a seal.
● Single door leaf load capacity of up to 200kg, meeting the needs for oversized viewing areas.
● Modular combination method with multiple opening options available.
Maximum Height : 5500mm
Maximum Width: 4000mm
Maximum Weight: 800kg
Thermal Break Specification: 53mm
Maximum Glass Size: 12 ㎡
Glass Specification: 38mm
Profile Visible Surface: 20mm
Opening Types
● 2 rail-1 sash-1 fixed
● 2 rail- 2 sash
● 2 rail-2 sash-2 fixed
● 2 rail-2 sash- fisso
Features
● Corner without columns, eliminating visual obstacles.
● Unobstructed panoramic views.
● Flexible track combinations, fully open pocket door design, completely concealed ground frames and tracks, 2 solutions for barrier-free and cleaner floors.
Ground method
